7 Position Slide Type 2.54mm DIP Switch

FOB Reference Price:Get Latest Price
1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
DongYa
Model Number:
LBD-DS-121
Max. Current:
25mA
Max. Voltage:
24VDC
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard export carton
Port
NingBo ShangHai
Lead Time :
30days after confirmation order

Specification



1.Electrical Life : 2000 operations cycles per switch 24 VDC, 25mA
2.Non-Switching Rating : 100mA, 50VDC
3.Switching rating : 25mA, 24VDC
4.Contact resistance : (a) 50 mΩ max. at initial;(b)100mΩmax. after life test
5.Insulation Resistance : 100MΩ, 500VDC
6.Dielectric Strength : 500VAC1 minute
7.Capacitance : 5pF max
8.Circuit : Single pole single throw

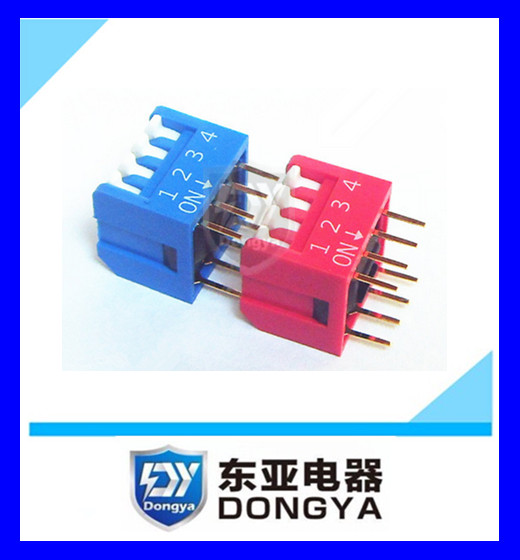

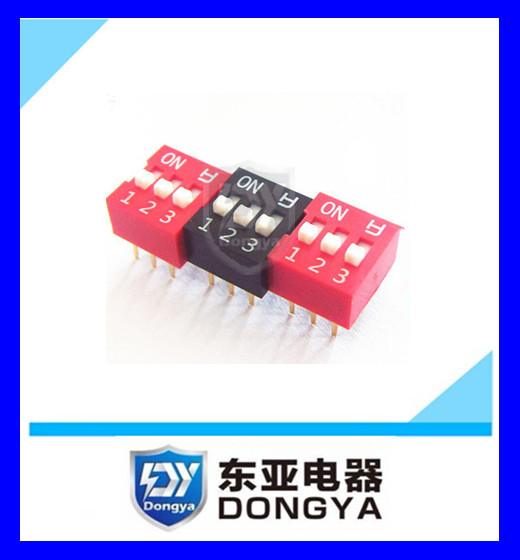

Product image

 13__22

 13__32
